50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution

50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution
50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution
50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution

Gambar besar :  50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution

Detail produk:
Tempat asal: Cina
Nama merek: Ruly Steel
Sertifikasi: CE,AISC,SGS, BV, ISO,GB
Nomor model: Rulyz0001
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 200 meter persegi
Harga: USD29-USD99 Per Square Meter
Kemasan rincian: Sebagai permintaan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 20000 meter persegi per bulan
Kontak

50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution

Deskripsi
Jenis: Struktur baja Rumah unggas Aplikasi: Rumah Unggas, Peternakan Broiler, Lapisan Pertanian
Ruang lingkup kerja: Desain, fabrikasi, pemasangan Bahan baja mentah: Q235B, Q355B atau setara
Perawatan permukaan: Lukisan atau hot-dip galvanize Kehidupan Layanan: 50 tahun
Menyoroti:

Broiler Farms Poultry House

,

Livestock Housing Poultry House

,

50 Year Poultry House

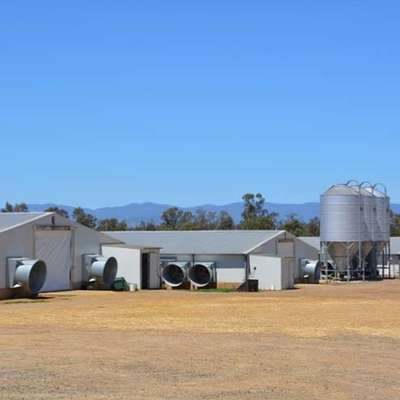

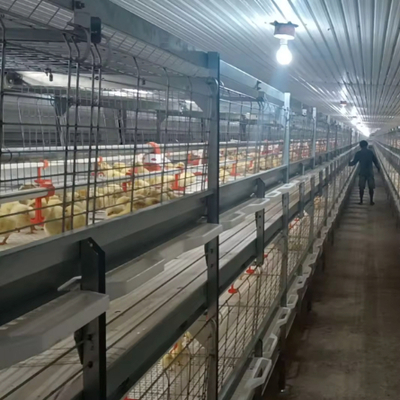

Poultry House for Broiler, Layer & Breeder Farms – Prefabricated Steel Structure with Insulated Panels and Ventilation System
Maximize productivity and ensure optimal bird health with our high-performance poultry house, engineered for modern commercial farms. Designed for broilers, layers, and breeder flocks, this prefabricated poultry house delivers a controlled, durable, and cost-effective environment that supports higher growth rates, better feed conversion, and improved egg production.
  • Galvanized steel frame structure offers superior strength, corrosion resistance, and long-term durability in high-humidity and high-ammonia environments
  • Insulated sandwich panels (EPS, PU, PIR or Rockwool core) provide excellent thermal insulation for stable temperatures year-round
  • Mechanical ventilation system (customizable) includes axial fans, cooling pads, and automated side curtains or inlet baffles
  • Open-span design with no interior columns maximizes usable space for equipment
  • Factory-precut components enable fast on-site assembly with bolted connections (40-60% faster than traditional construction)
50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 0
Main Parts of the Steel Structures and Technical Parameters
Main Structure
Component Specification
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting. Or hot-dip galvanized
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Component Specification
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU/PIR)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU/PIR)
Poultry equipment Cooling pad, exhaust fan, etc.
Installation Options
  • Method 1: We provide shop drawings before installation
  • Method 2: We teach installation in our factory and can assemble a sample structure if needed
50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 1
Packing and Transport
50 Year Steel Poultry House For Broiler Layer Farms With Insulated Panels Livestock Housing Solution 2
All structures come with full engineering drawings, load calculations, and material certifications for international compliance.
This poultry house is a smart, long-term investment in sustainable and efficient poultry farming, combining durability, climate control, and rapid deployment to support your farm's success today and into the future.
