Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage

Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage
Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage

Gambar besar :  Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage

Detail produk:
Tempat asal: Qingdao, Tiongkok
Nama merek: Ruly Steel
Sertifikasi: AISC, ASTM, CE, AS/NZS, GB
Nomor model: RULYZ001
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 200 meter persegi
Harga: 35-50 USD/Sqm
Kemasan rincian: Kontainer 20GP/40HQ/40OT
Waktu pengiriman: 15-20 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan: 1.500 Ton/bulan
Kontak

Heavy Duty Prefabricated Steel Warehouse with Customizable Dimensions for Cement Plant Storage

Deskripsi
Aplikasi: Bengkel baja, rumah baja fabrikasi, gudang struktur baja, penyimpanan, gudang Nilai: Q235B, Q355B dan setara
Standar: AISC, ASTM, CE, AS/NZS, GB Ukuran: Kebutuhan Pelanggan
Nama Produk: Struktur Baja Gudang, Gudang Gudang Struktur Baja Multi-Lantai Bangunan, Harga Murah Ekonomis Prefab Purlin: Q235B, Q355B Baja Galvanis berbentuk C/Z
Warna: Dapat disesuaikan Bahan: Q235 / Q345 Baja, panel sandwich, lembaran baja galvanis, rangka baja ringan, Bahan
Pintu: Pintu geser, pintu rol, pintu bagian, pintu panel sandwich Jendela: Jendela paduan aluminium, tirai kaca
Perawatan Permukaan: Sistem pengecatan alkyd, sistem pengecatan epoksi atau hot-dip galvanis. Desain Gambar: AutoCAD / PKPM / 3D3S/ Tekla
Instalasi: Gambar instalasi, panduan insinyur di lokasi atau tim pekerja Kelongsong: Lembaran baja berlapis, panel sandwich

Heavy Duty Steel Structure Warehouse for Cement Plant Storage
The Heavy Duty Steel Structure Warehouse for Cement Plant Storage is specifically designed to meet the demanding storage and logistics requirements of cement manufacturing facilities. Whether used for raw material storage, clinker storage, cement packaging operations, equipment warehousing, or finished product inventory management, this steel warehouse solution provides exceptional structural strength, durability, and operational efficiency.

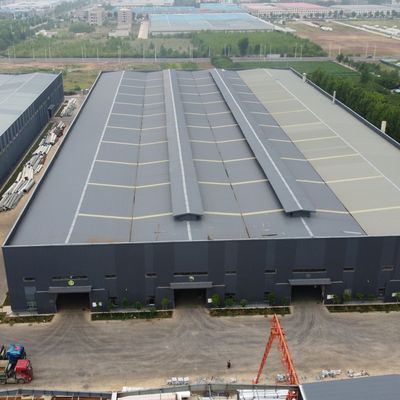

Heavy duty steel structure warehouse exterior view Steel warehouse interior structure and framework
Compared with traditional concrete buildings, prefabricated steel structure warehouses offer faster construction, lower foundation costs, greater flexibility, and easier future expansion. The building is manufactured in a controlled factory environment, ensuring precise fabrication quality and efficient on-site assembly.

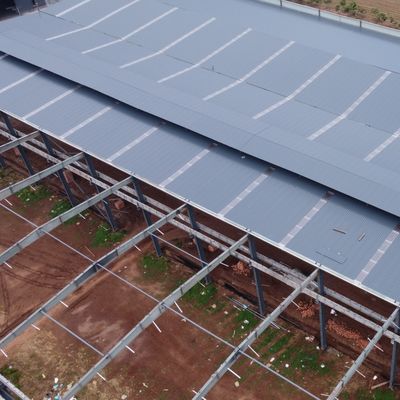

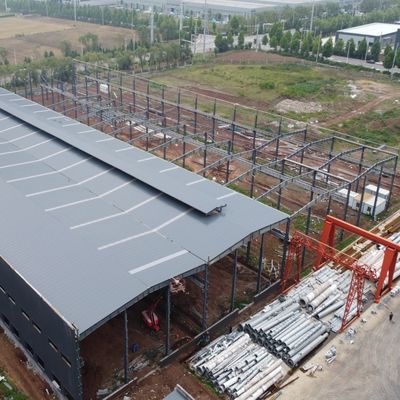

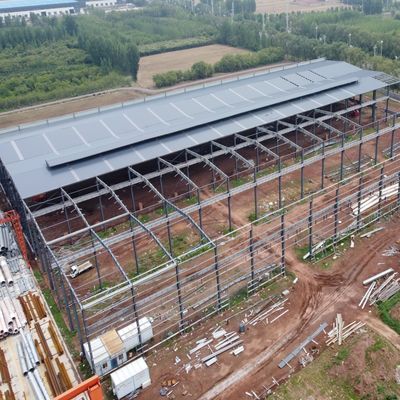

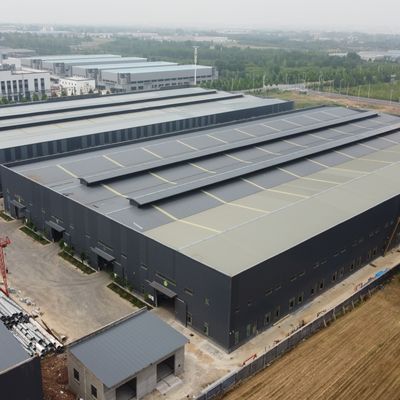

Steel warehouse construction process Completed steel warehouse facility
The warehouse can be designed according to the specific operational needs of cement plants, including large storage volumes, heavy-duty equipment access, truck circulation routes, and bulk material handling systems. The structural system is optimized to provide maximum usable interior space while maintaining excellent safety performance.
Technical Specifications
Name Heavy Duty Steel Structure Warehouse for Cement Plant Storage
Structure Type Portal frame structure, truss frame, flat frame structure
Length 20m~200m
Width 20m~50m
Eave Height 4m~30m
Roof Slope Recommend 5~15% according to site
Steel beam & Column H-section steel, truss steel, steel tube, latticed steel, cross-section steel
Roof & Wall cladding Galvanized steel cladding sheet, sandwich panel
Door Sliding door, folding door, roller shutter door, etc.
Window Aluminum alloy frame window, louvers, etc.
Anti-corrosion for steel structure Alkyd painting, Epoxy painting or Hot-dip galvanized
Our Services
Steel Structure Fabrication Cutting, welding, painting, hot-dip galvanizing, and pre-assembly of structural steel components.
Design & Engineering Design, engineering, fabrication, and installation support for prefabricated steel buildings.
Shop Drawing Services Detailed fabrication drawings and shop drawings based on client-provided architectural and structural plans.
Engineering Consulting Structural optimization, technical consultation, and project support from design to construction.
Comparison of Roofing and Wall Systems
Item Steel Sheet EPS Panel Rock Wool Panel PU/PIR Panel Glass Fiber + PVC/Aluminum Foil
Initial Cost Lowest Low-Medium Medium High Low
Thermal Performance Poor Good Good Excellent Good
Fire Resistance Poor Moderate Excellent Good Moderate
Sound Absorption Poor Moderate Good Good Moderate
Recommended Application Warehouses, sheds, equipment shelters in mild climates Industrial buildings requiring economical insulation Factories, warehouses, workshops with high fire protection requirements Cold storage, food processing plants, energy-efficient industrial buildings Large-span steel buildings requiring economical thermal insulation
Quality Inspection
Inspection Item Purpose Details
Material Inspection Verify raw material quality
  • Thickness tolerance <0.25mm
  • Yield and tension strength testing in-house
  • Third party inspection certificate
  • Traceable mill certificate
Welding Inspection Ensure weld integrity
  • 100% testing dimension tolerance <1mm
  • 20% sample welding line ultrasonic testing, no fault, full penetration
  • 20% magnetic particle testing, no bubble, no defect
  • Third-party inspection available
Coating Inspection Check paint thickness
  • Surface Preparation Grade Sa 2.5, no visible rust, no mill scale and contaminants, welding spatters removed
  • Primer to be applied within 4-6 hours after blasting and before any visible flash rusting occurs
  • Dry film thickness (DFT): 75 ± 15 μm
Magnetic Particle Testing Detect surface and near-surface defects Standard magnetic particle testing procedures applied
Packaging & Shipping
All steel components are bundled and secured on steel pallets for safe handling and transportation. The pallets are loaded into containers using gantry cranes and forklifts, ensuring efficient and damage-free loading.
Certifications
Our facilities and processes meet international quality standards and certifications relevant to steel structure manufacturing and construction.
