Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel

Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel
Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel

Gambar besar :  Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel

Detail produk:
Tempat asal: CINA
Nama merek: Ruly Steel
Sertifikasi: CE, AISC, SGS, BV, ISO, GB
Nomor model: RULYZ007
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 200 meter persegi
Harga: USD29-USD99 Per Square Meter
Kemasan rincian: Sebagai permintaan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 20000 meter persegi per bulan
Kontak

Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel

Deskripsi
Jenis: Struktur baja ternak Aplikasi: Sapi perah / sapi sapi sapi / sapi sapi / sapi pakan / breeding / domba
Tingkat baja: Q235B, Q355B atau EGIVIVALEN EG ASTM Perawatan permukaan: Lukisan atau hot-dip galvanis
Metode koneksi: Rakitan Baut Kekuatan Tinggi-Tidak ada pengelasan di tempat, instalasi cepat dan aman
Menyoroti:

Livestock Feeding System Cattle Shed

,

Galvanized Steel Frame Cattle Shed

,

Solar Panel Cattle Shed

Description

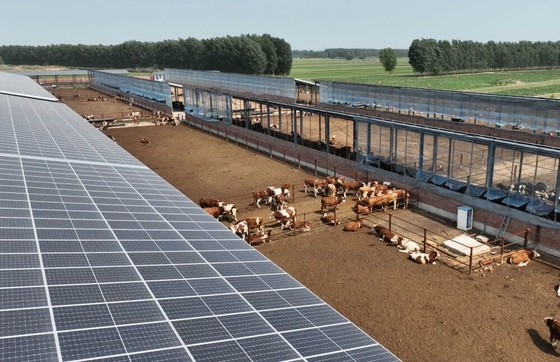

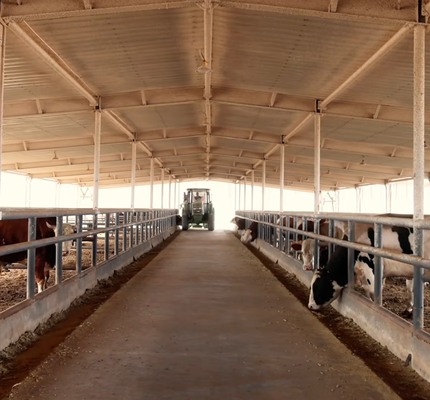

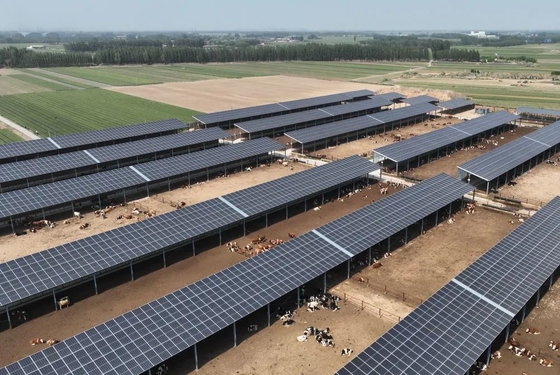

Optimize herd comfort and farm efficiency with our open-sided cattle shed — a smart, low-cost solution designed for dairy cows, beef cattle, and feedlot operations in tropical, subtropical, and arid climates. This ventilated livestock shelter provides essential shade, weather protection, and airflow while minimizing construction and maintenance costs.Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel 0

Built with a hot-dip galvanized steel frame (Q235B / Q355B / equivalent), the structure resists rust, corrosion, and animal impact — ensuring a service life of 20+ years even in high-humidity or dusty environments. The open-side design promotes natural cross-ventilation, reducing heat stress and improving air quality without mechanical systems.

All components are factory pre-cut, pre-drilled, and numbered for bolted on-site assembly — no welding required. Installation is typically 50% faster than traditional barns, reducing labor costs and enabling rapid deployment for seasonal or emergency use.

Item name Specification Material Parameter Technical Treatment
Column H shape,Box,steel pipe,Hot-rolled sheet Q235B,Q355B Paint or Hot-dip galvanized
Beam H shape,steel Truss,Hot-rolled sheet Q235B,Q355B Paint or Hot-dip galvanized
Bracing Tie rod,Casing pipe,Angle steel Q235B,Q355B
Purling C / Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q355B Hot-dip galvanized
Wall & roof panel EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot-dip galvanized
Window Alloy-Glass,Aluminium alloy-shutter, Louvers T=1.0~2.0mm Alloy
Skylighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot-dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot-dip galvanized,304
Downpipe PVC / Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot-dip galvanized

Anchor bolt

Steel rod M24,M27 M30

 Q235B

Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel 1

Packing&Shipping

Galvanized Steel Frame Cattle Shed With Automatic Livestock Feeding System And Optional Solar Panel 2


Why Choose Us


Professional design

 We design the drawing as your requirement or calculate the steel quantity based on your drawing.

Skilled fabrication

 We make the independent production schedule to each project.

One-stop service

 We have completed lots such kinds of projects, we could provide the integrated proposal for your project.

Professional QC

 We guarantee the production and service as your request. Third-party inspection is also acceptable.

After sales service

 If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can.


How to quote:


1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high


7


Thermal insulation

If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested;if not, the metal steel sheets will be ok.

The cost of the latter will be much lower than that of the former
8 Livestock  quantity / target weight
